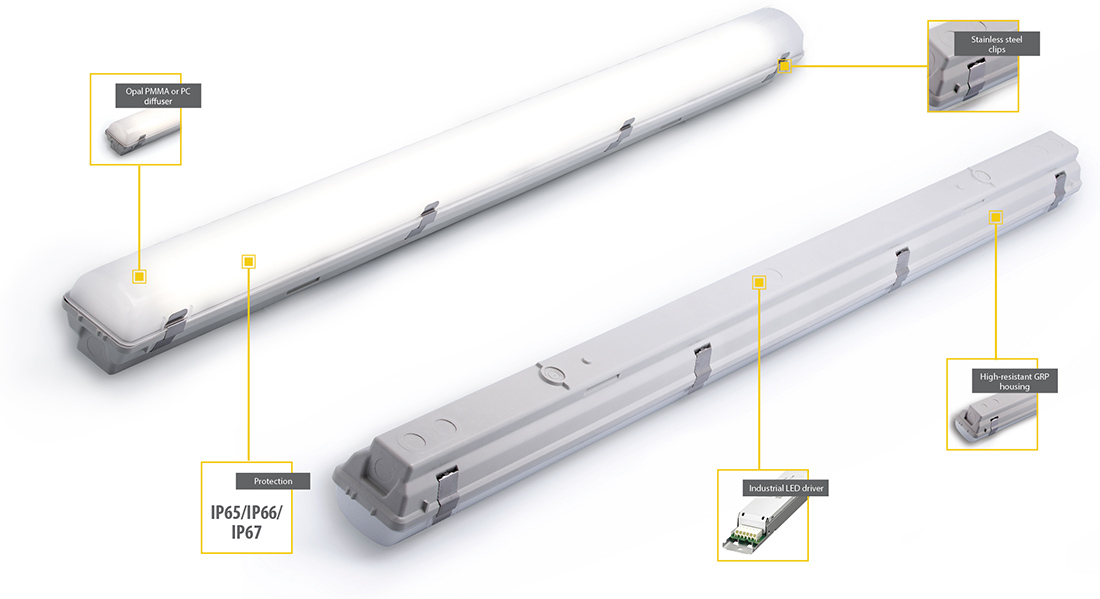

One luminaire, different environments.

The REFLECTA® BASLED industrial luminaires are made for wide usage, from industrial environments, storage facilities, parking garages etc. A high grade o protection makes REFLECTA® BASLED the right choice in di erent demanding conditions. The outstanding transmissivity of the new PMMA opal cover allows the luminaires to have a high light e ciency.

Optics

00 - OPAL DIFFUSED

  • Mounting height: 1-12 m
  • Beam angle: 112°
  • Variants: 18-46 W

Technical data

REFLECTA BASLED
Housing GRP / PC
Cover PMMA / PC
Optics Opal diffuser
Protection IP66
Impact Protection IP65 / IP66 / IP67, IK04 / IK10
Ambient Operating Temperature Ta = -20°C to +40°C
Driver Non-dimming, DALI
Supply voltage 220-240V, 50-60HZ
Power Factor λ = 0,98
Life Expectancy Up to 60.000h L80B20
Luminous efficacy Up to 152 lm/W
Colour Of Light 4000 K / 5000 K
Colour Rendering Index CRI>80
Warranty 5 years
Made in European Union (EU)
BAS19 BAS34 BAS42
Dimension LxWxH 669 x 90 x 97 mm 1277 x 90 x 97 mm 1577 x 90 x 97 mm
Weight 1,5 kg 2,1 kg 2,6 kg
Power 19W 34W 42W
Luminous Efficacy* 145 lm/W 152 lm/W 146 lm/W
*luminous efficacy and lumen output valid for REFLECTA BASLED NB optics.
